Crossfire TRex 110 2025

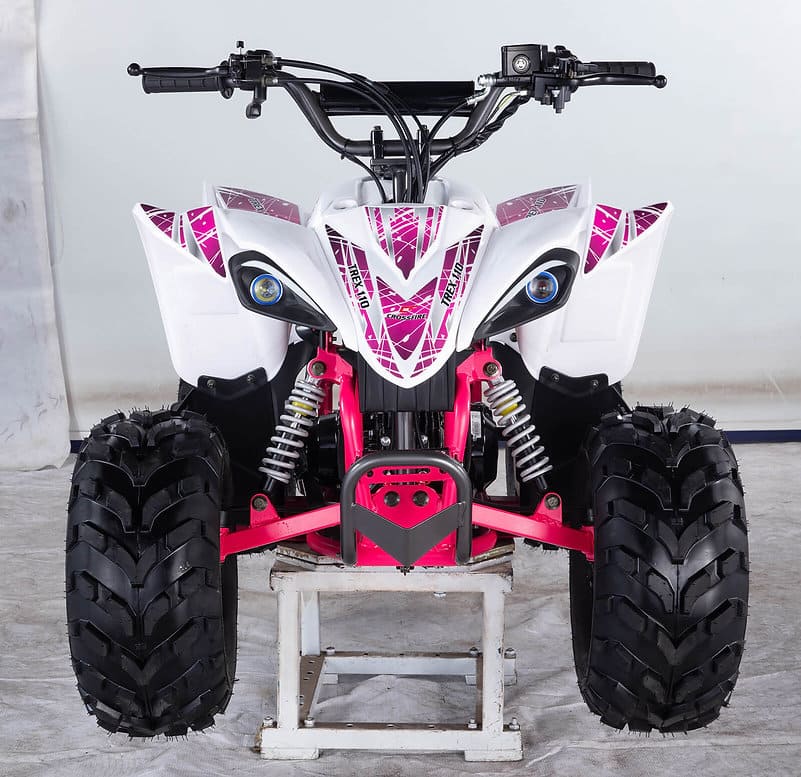

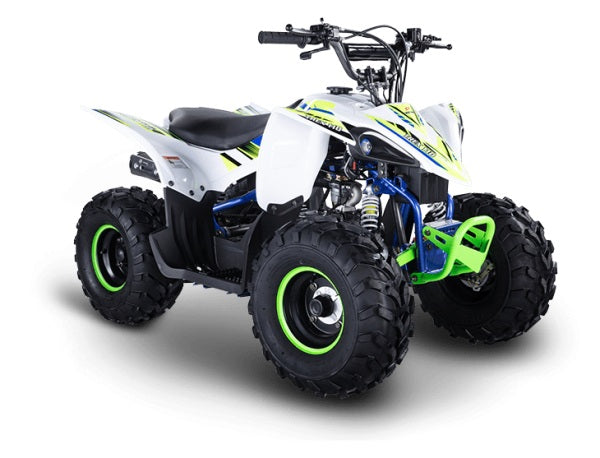

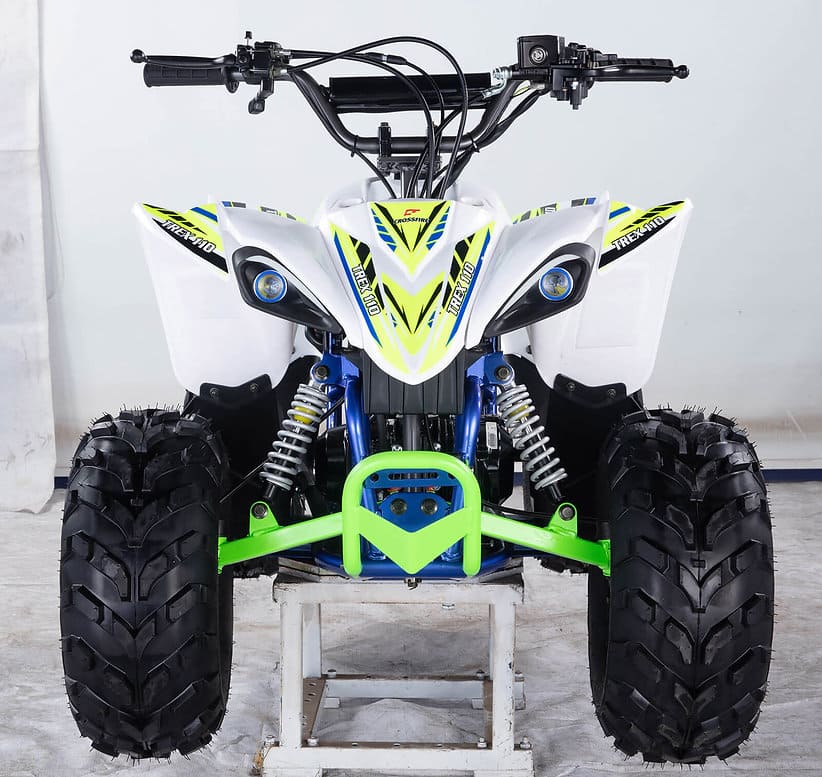

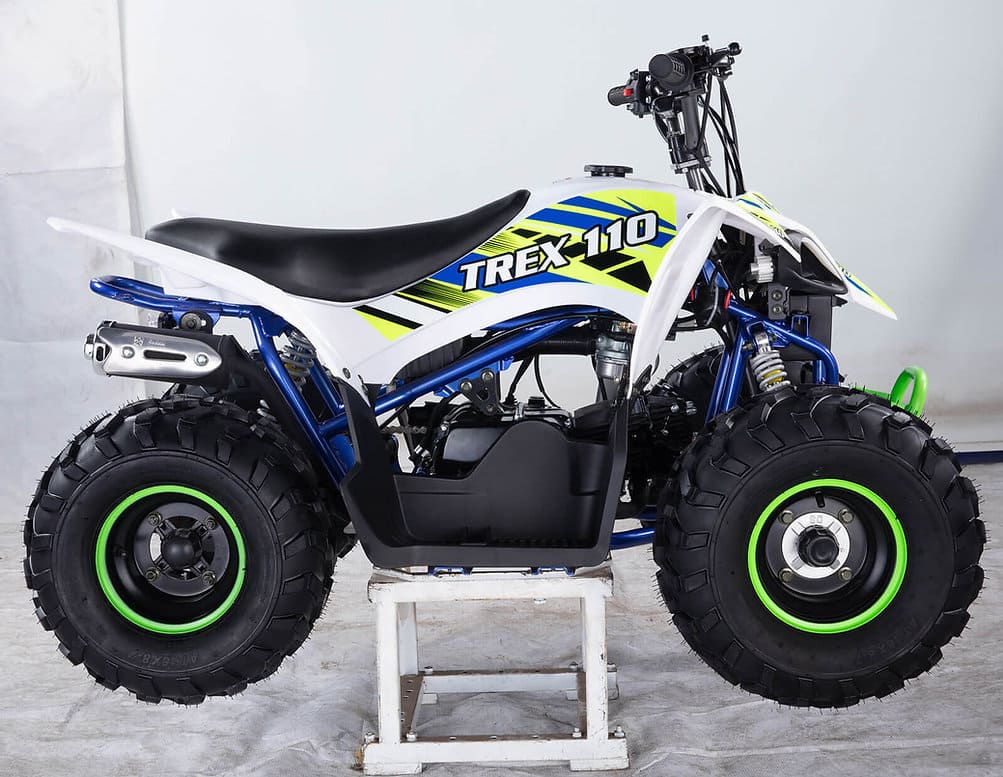

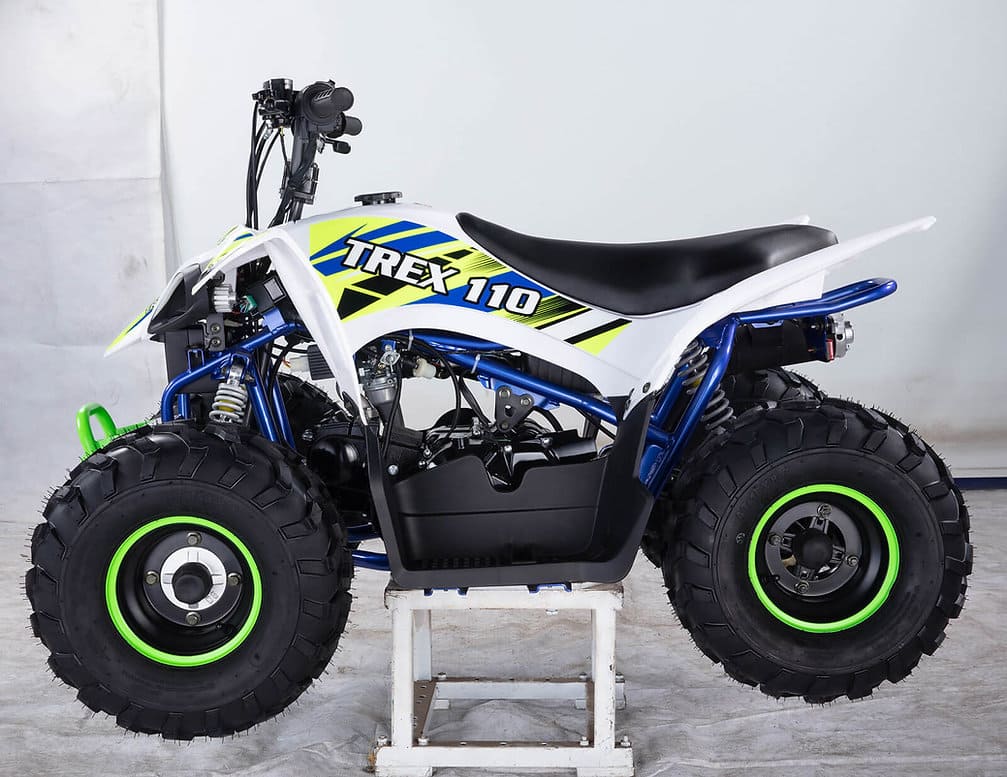

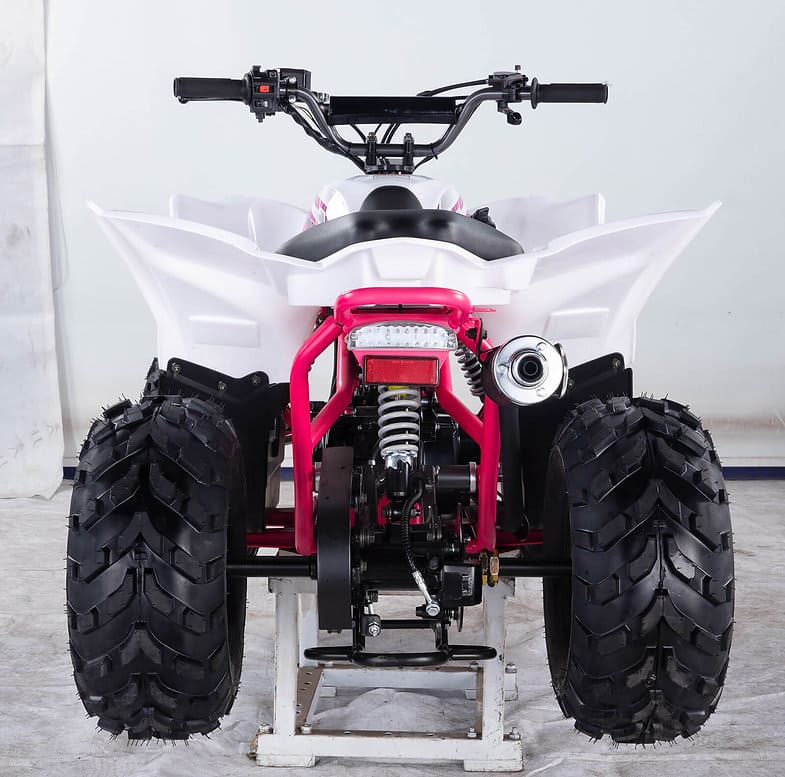

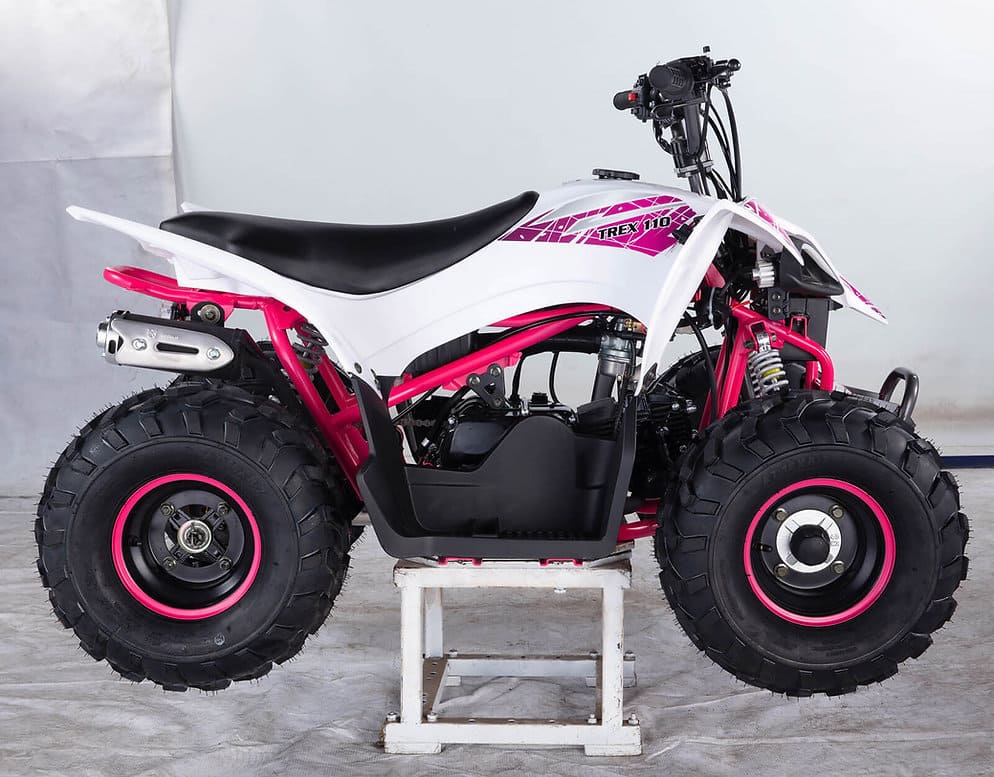

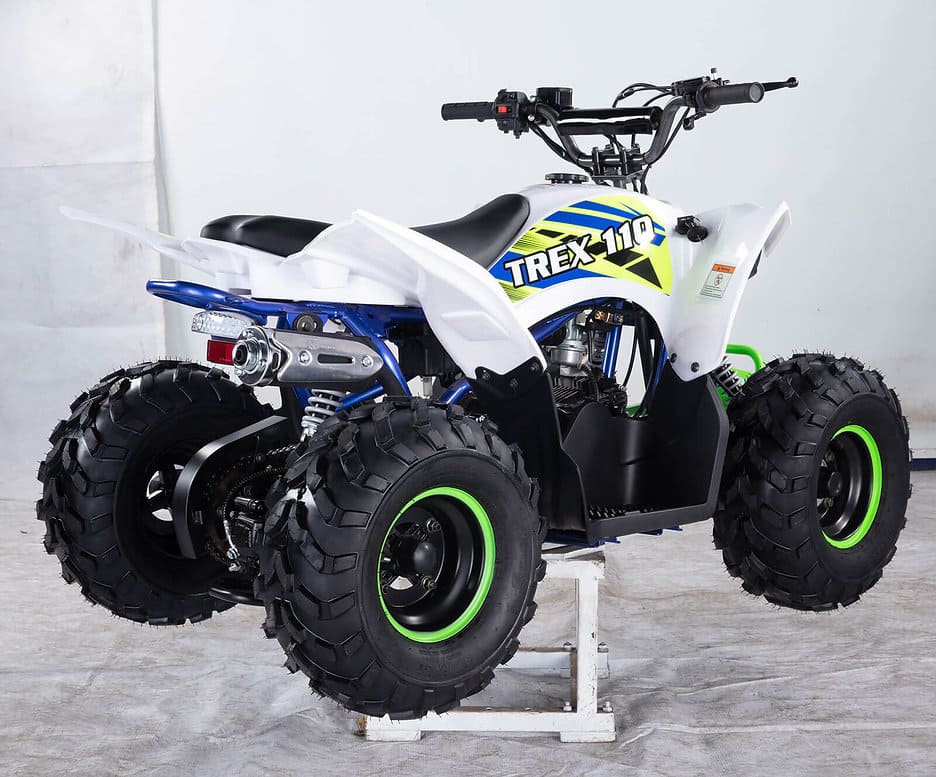

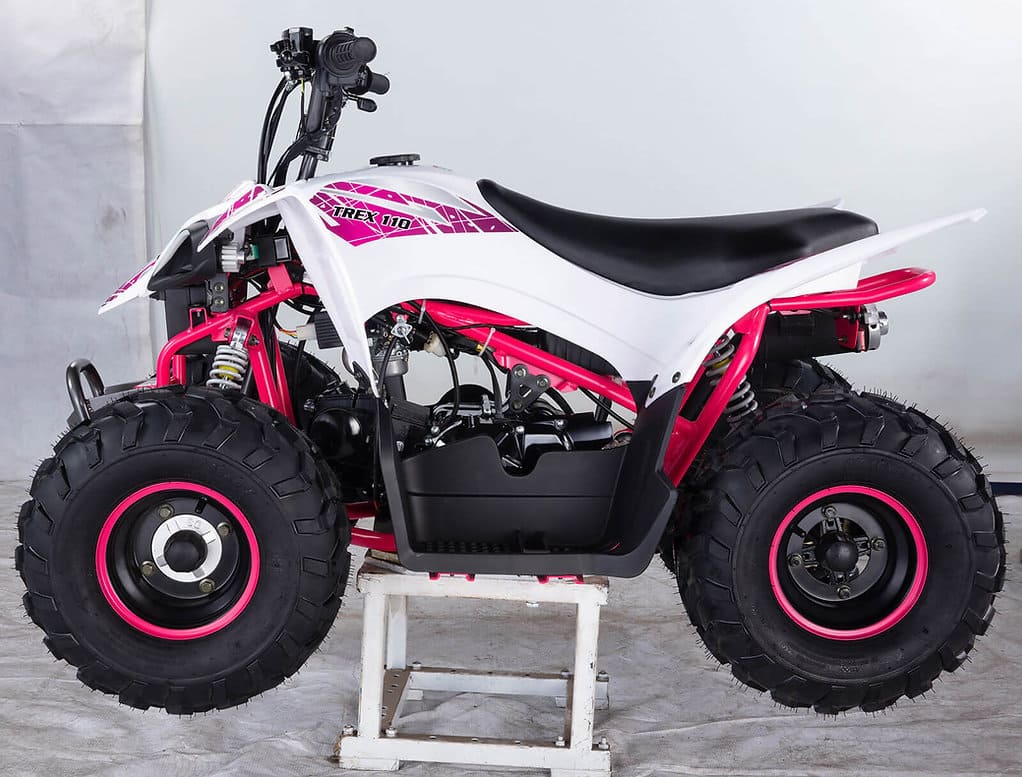

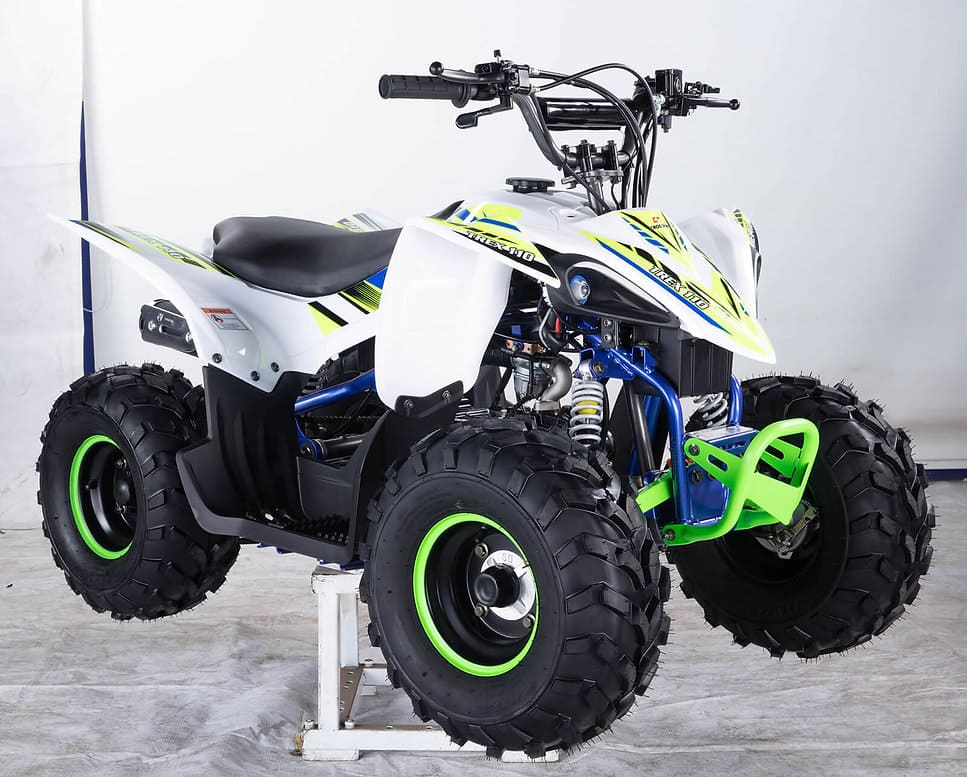

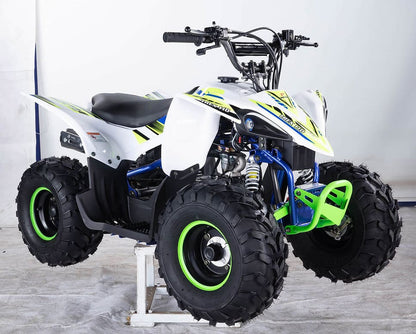

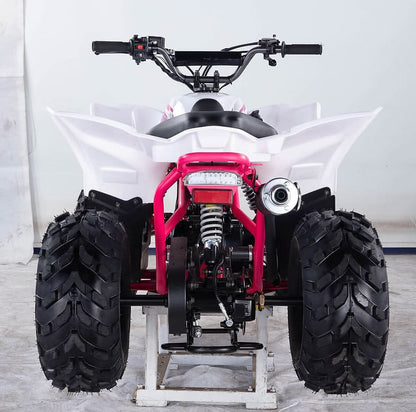

Crossfire Trex 110 – Compact Power & Confidence for Young Riders

The Crossfire Trex 110 is a stylish, safe, and user-friendly quad bike designed for riders aged 10 and up (depending on size and experience). With a fully automatic transmission and electric start, it's built for convenience—no kickstarting, no stalling, just press and go.

Its enclosed footboards provide better rider protection from mud and debris, making it a perfect choice for young off-road enthusiasts. Combined with a plush memory foam seat, the Trex 110 ensures all-day comfort during adventure rides.

✅ Key Features

• 110cc 4-Stroke Engine (152FMH)

• Electric Start – Easy to get going

• Fully Automatic Transmission – No shifting required

• Enclosed Footboards – Extra safety & cleanliness

• LED Headlights + DRL – Modern styling and visibility

• 7” Wheels – Ideal for young riders

• Chain Drive

• Air Box Included

🔧 Engine & Performance

• Displacement: 107 ml

• Compression Ratio: 9.1 : 1

• Cylinder Bore x Stroke: 52.4 × 49.5 mm

• Carburetor: PZ19 (Plunger Type)

• Ignition: CDI

• Starter: Electric

• Clutch: Wet multi-plate + automatic centrifugal

• Max Power: 5.0 kW @ 7500 rpm

• Max Torque: 7.5 Nm @ 5500 rpm

• Lubrication: Pressure + splash mixed

• Oil Type: 15W/40-SE (or HQB-10 for <-10°C)

• Fuel: 90# or higher unleaded

• Fuel Tank Capacity: 5 L

• Top Speed: 45 km/h

🛞 Suspension, Brakes & Tyres

• Front Suspension: Single rocker independent

• Rear Suspension: Longitudinal arm independent

• Front Shock: 185 mm

• Rear Shock: 260 mm

• Front Brakes: Drum (hand-operated)

• Rear Brakes: Hydraulic disc (hand-operated)

• Tyres (F/R): 16×8.00-7

📏 Dimensions & Weight

• Vehicle Size: 1260 × 820 × 855 mm

• Wheelbase: 850 mm

• Seat Height: 620 mm

• Ground Clearance: 95 mm

• Handlebar Height: 820 mm

• Chassis Height: 150 mm

• Turning Diameter: 2800 mm

• Dry Weight: 90 kg

• Gross Weight: 109 kg

• Max Load Capacity: 60 kg

• Battery: 12V, 5Ah

📦 Additional Info

• Color Options: Black, White

• Warranty: 6 months standard / 12 months with authorized dealer servicing (within 1 and 6 months)

• Assembly Required: Not included in base price — Add $150 if assembly is needed
