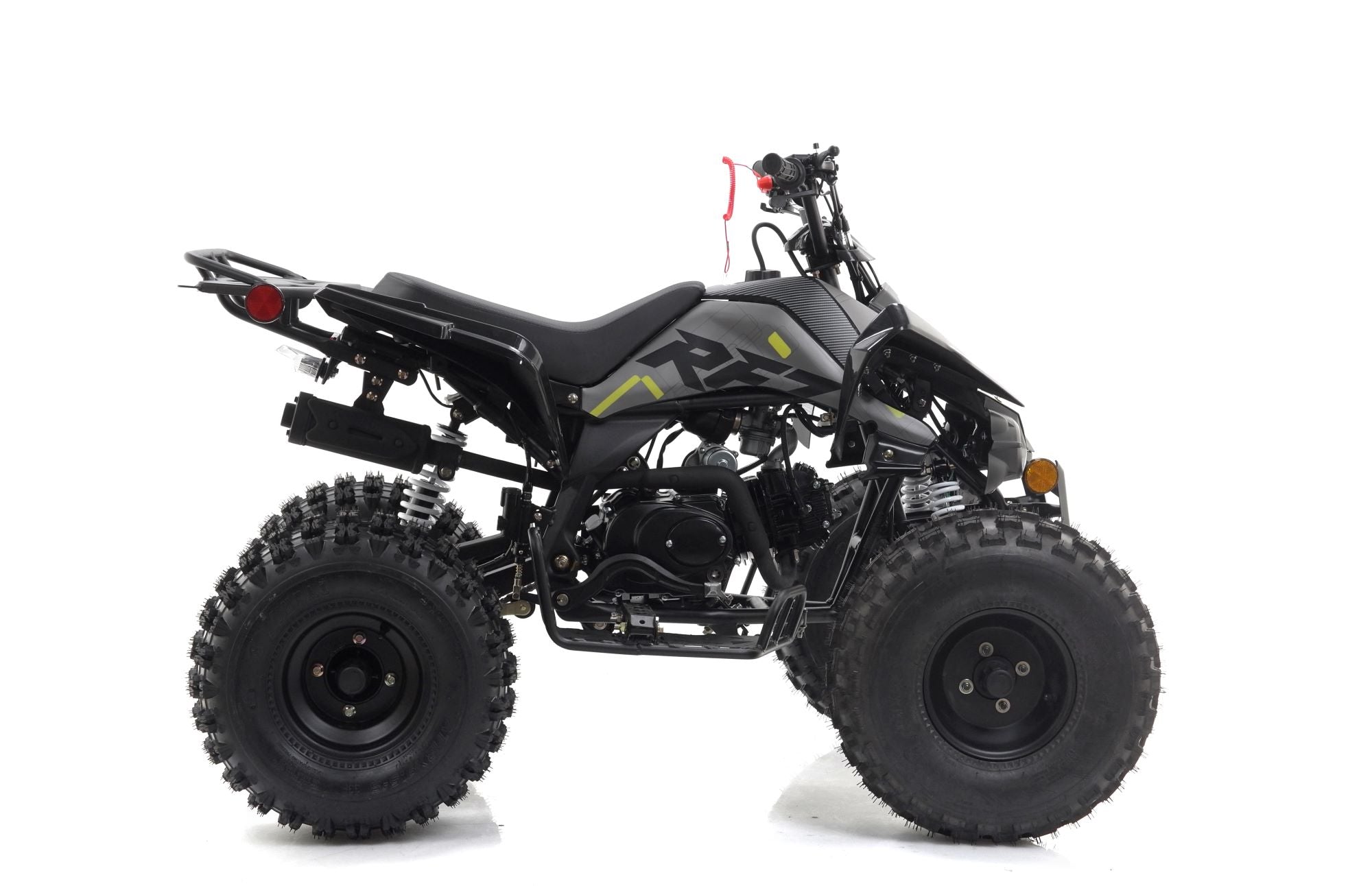

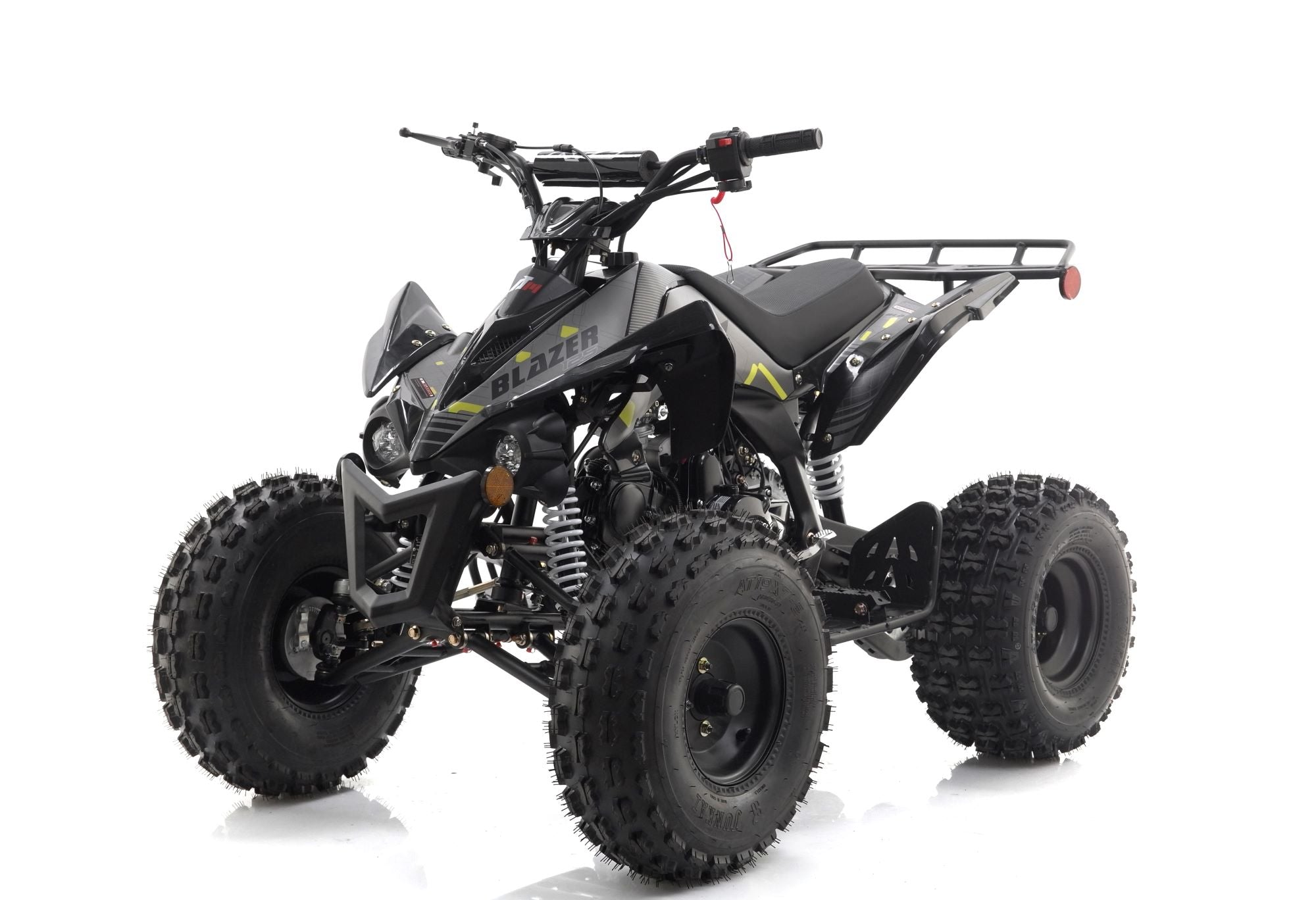

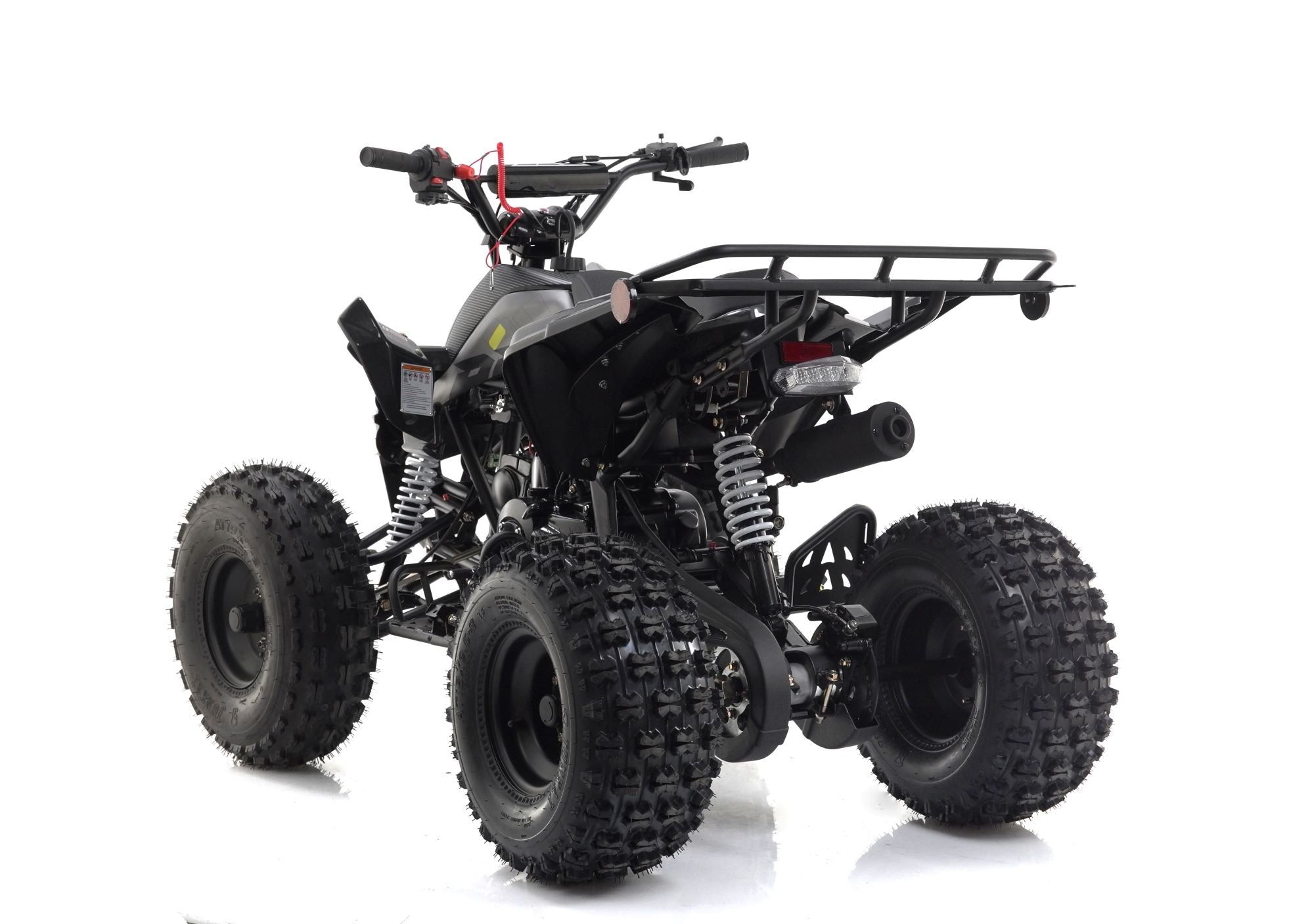

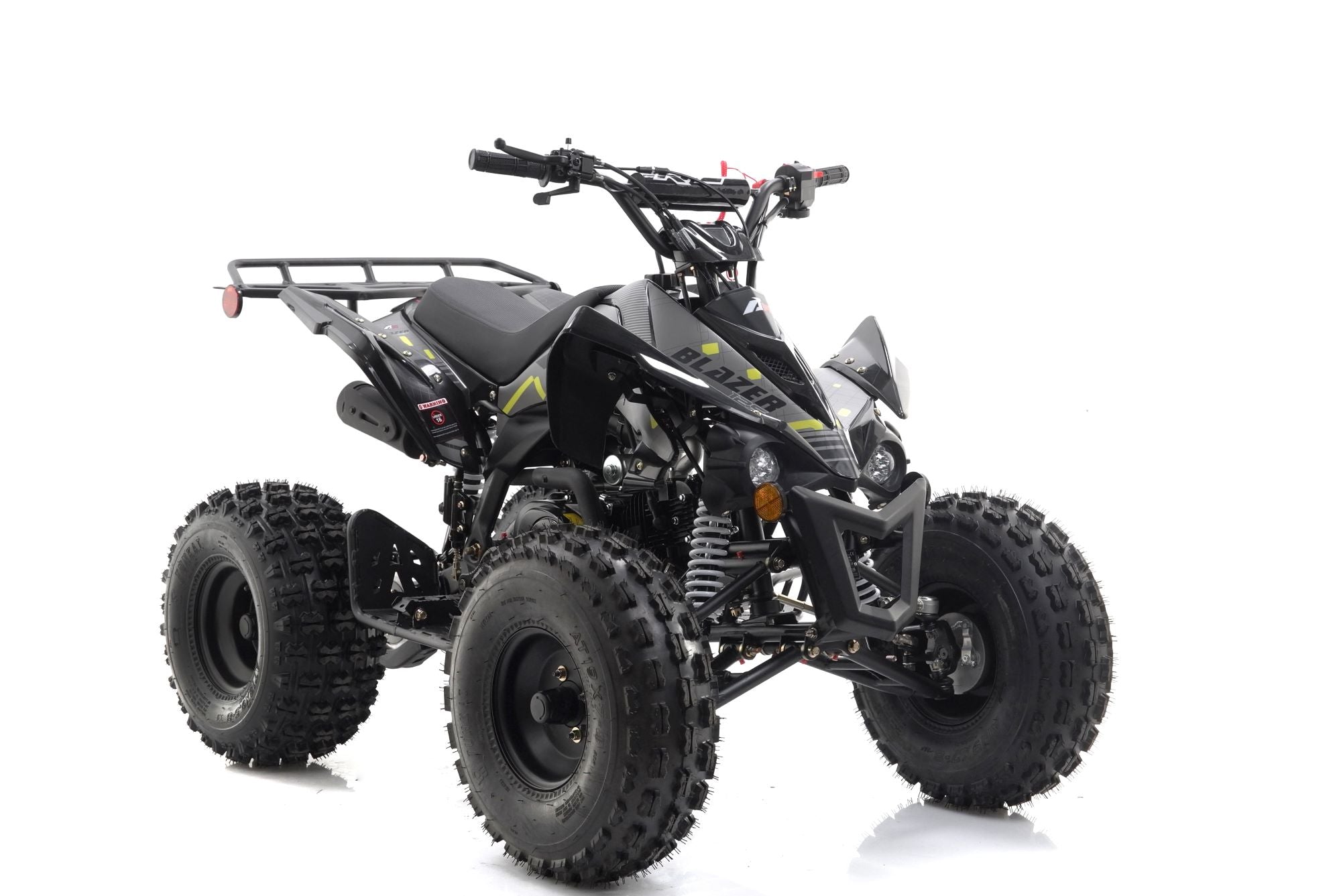

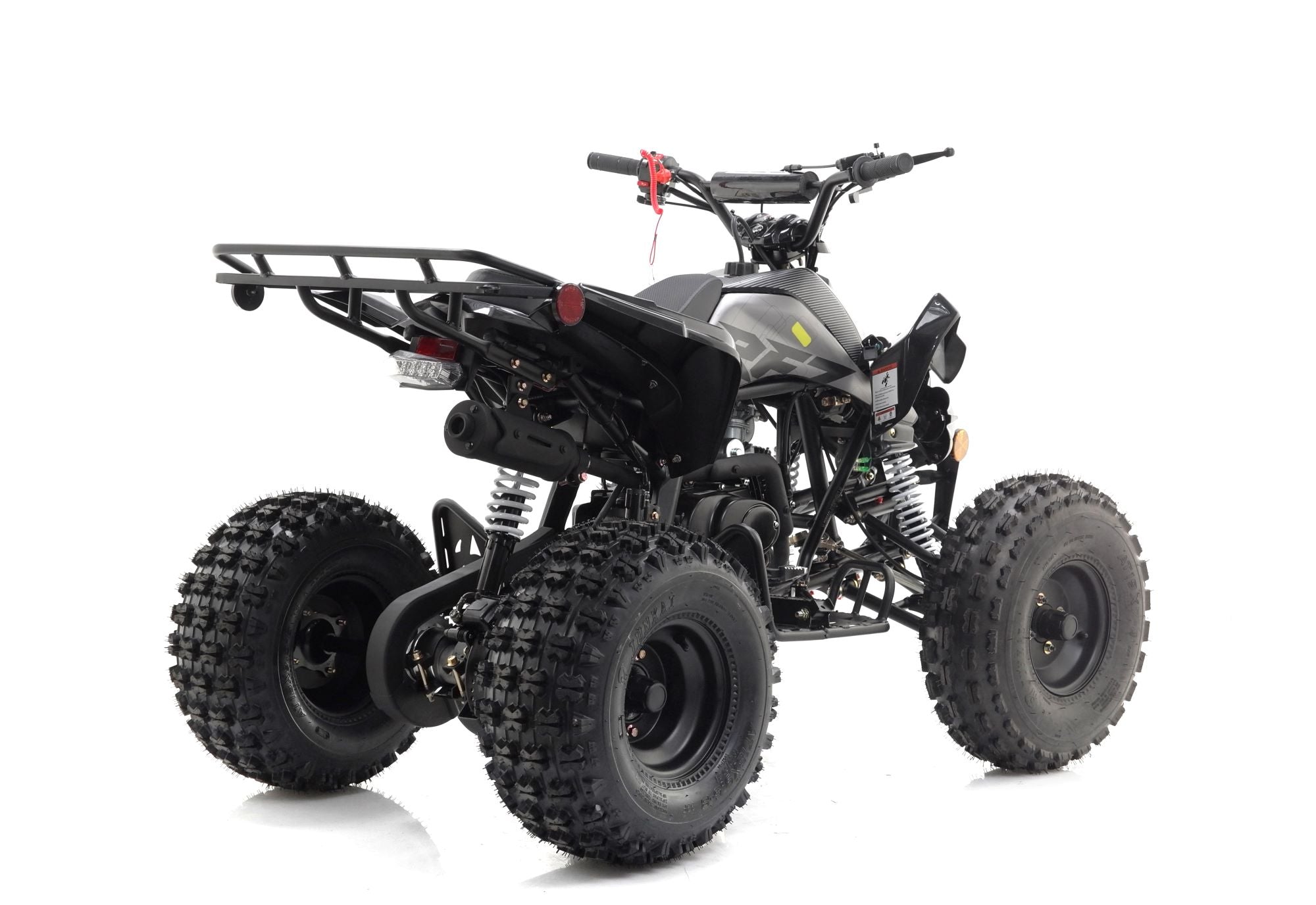

120cc Semi-Automatic ATV – Durable Steel Frame, Disc Brakes, 8" Wheels

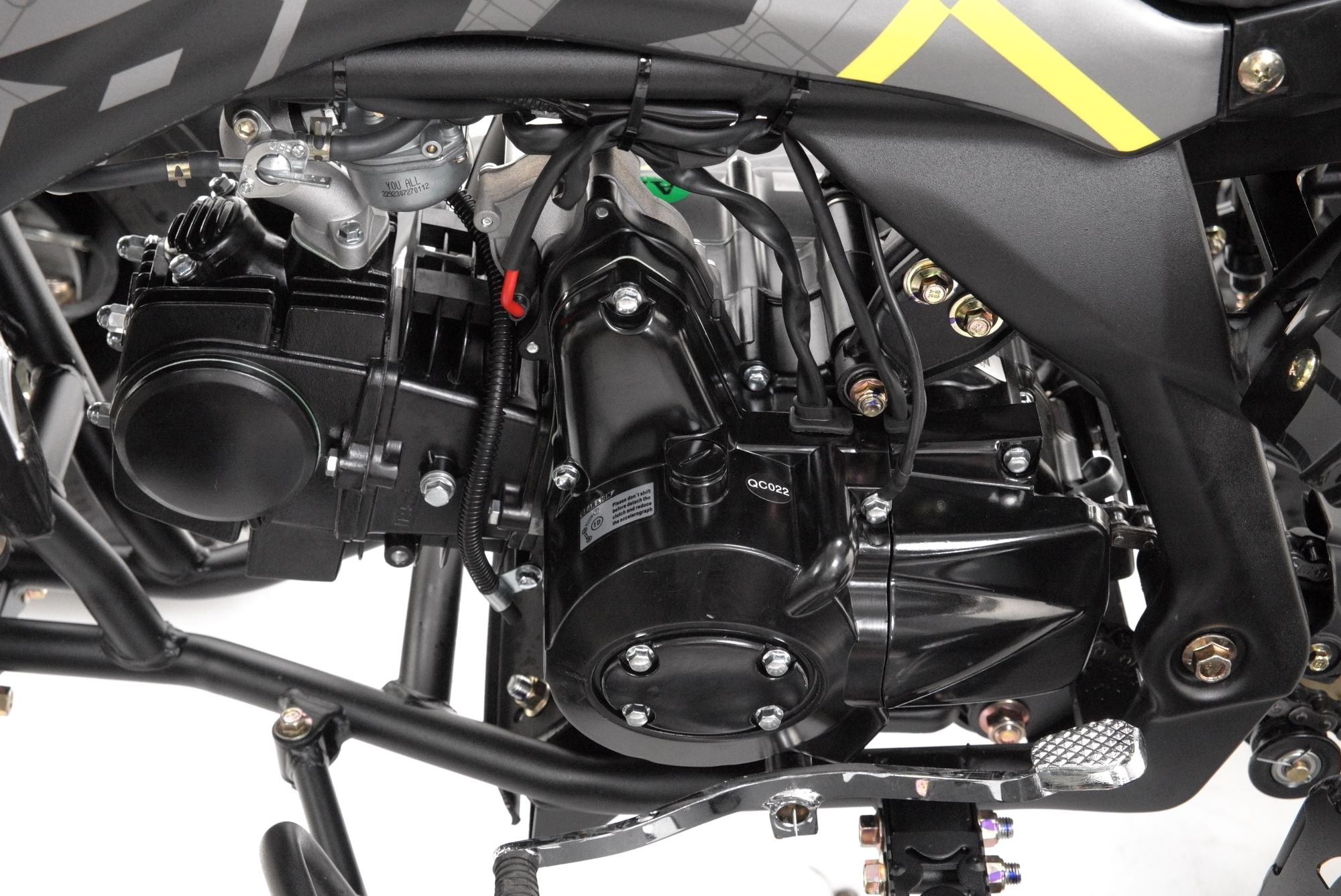

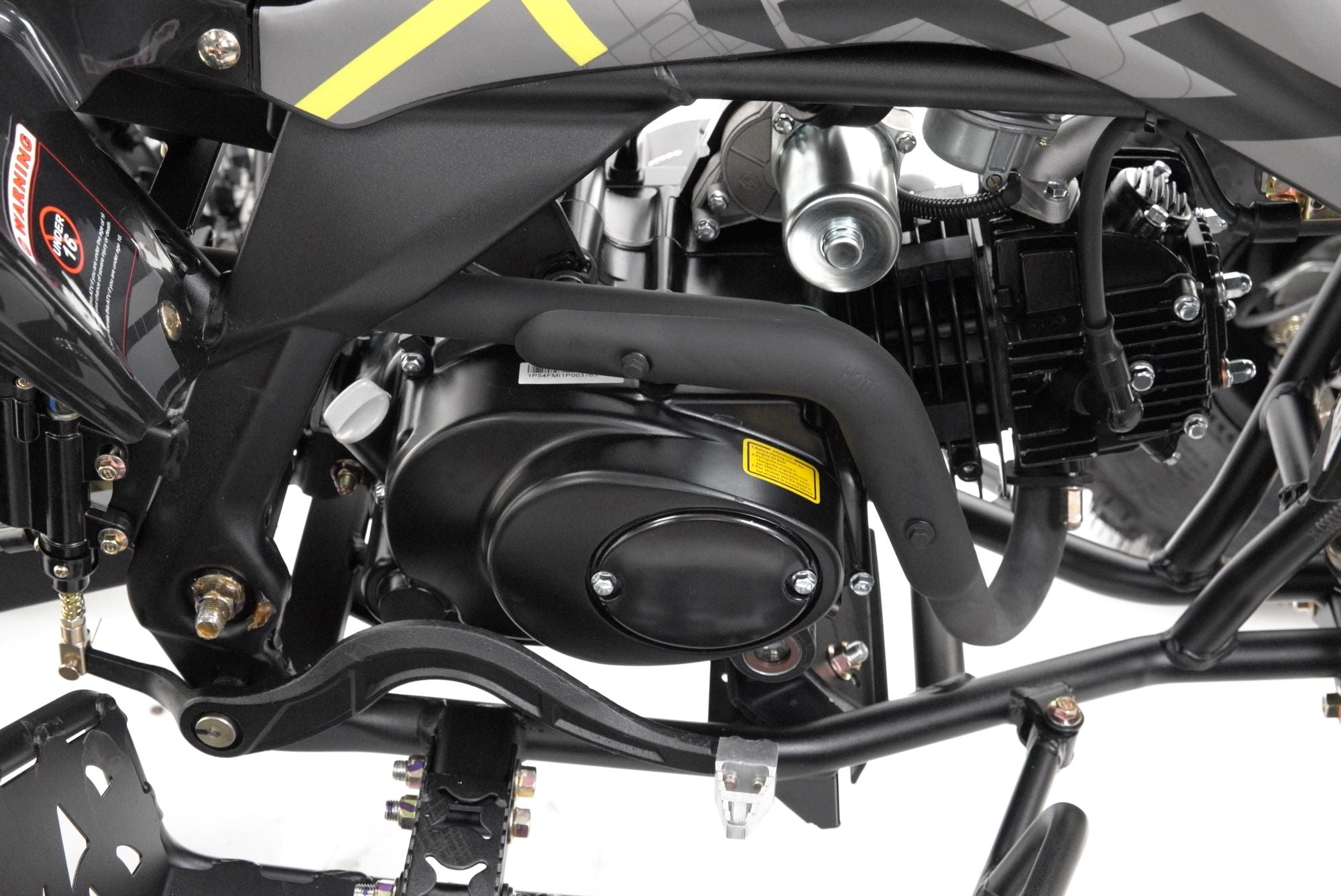

Engine & Performance
Built for reliable performance, this ATV features a horizontal 120cc air-cooled engine with semi-automatic transmission—ideal for both new and experienced riders.
-
Engine Model: 152FMI
-
Engine Type: Single-cylinder, 4-stroke, air-cooled, semi-automatic
-
Displacement: 119.7 cc
-
Compression Ratio: 9.0 : 1
-
Maximum Power: 5.5 kW @ 7500 ±500 rpm
-
Maximum Torque: 8.5 Nm @ 7500 ±500 rpm
-
Idle Speed: 1500 ±500 rpm
-
Starting System: Electric
-
Ignition: CDI
-
Lubrication: Pressure and splash
-
Clutch: Automatic wet multi-plate
-
Spark Plug: A7RTC
-
Engine Oil Type: SJ 10W/40
-
Oil Capacity: 0.9 L
-
Fuel Tank Capacity: 2.2 L
-
Magneto Type: Permanent magnetic
-
Battery: 12V 5Ah
-
Horn: 12V / 1.5A electric horn
Transmission & Drive
-
Transmission Type: Semi-automatic
-
Drive System: Chain-driven
-
Top Speed: ≤ 48 km/h

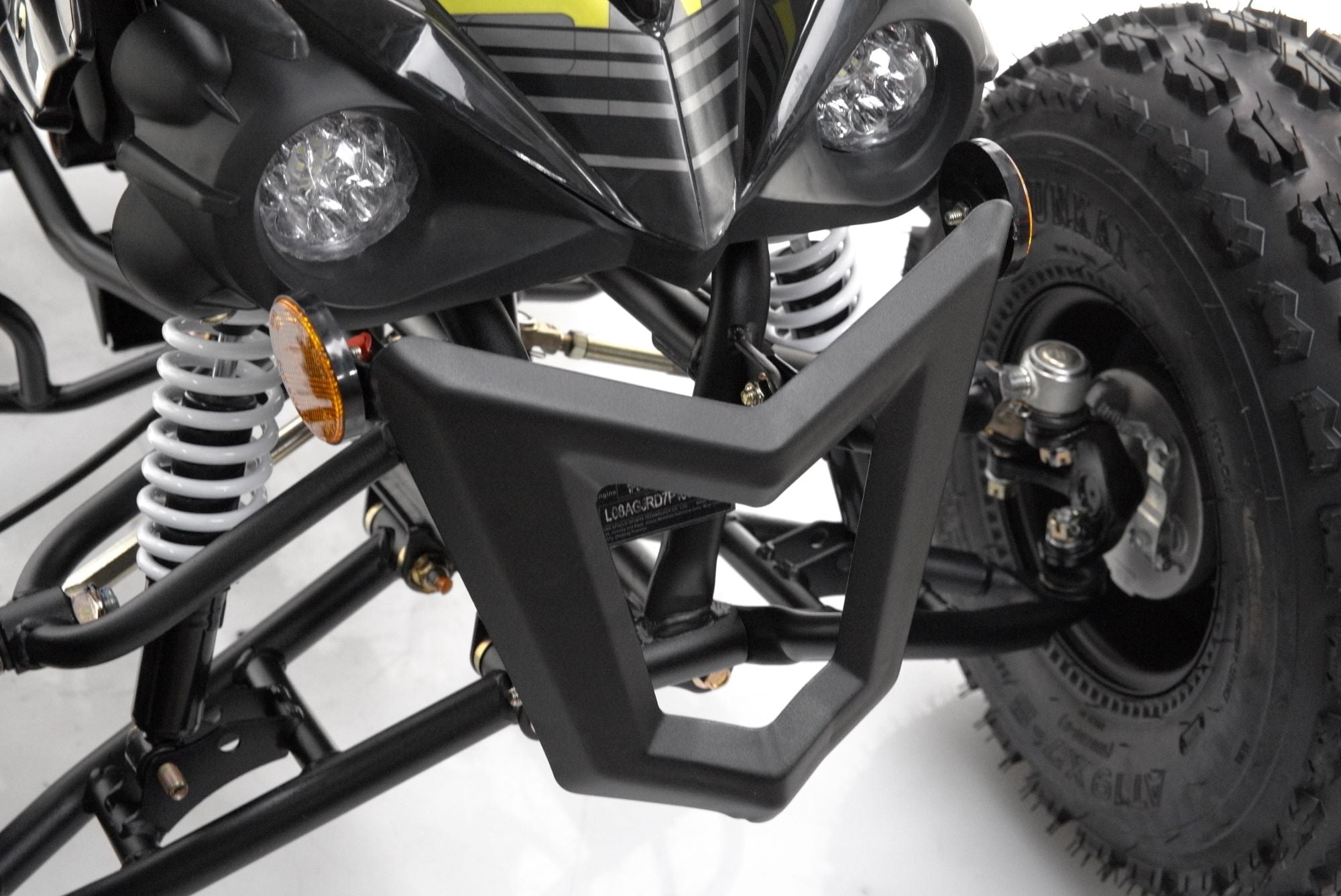

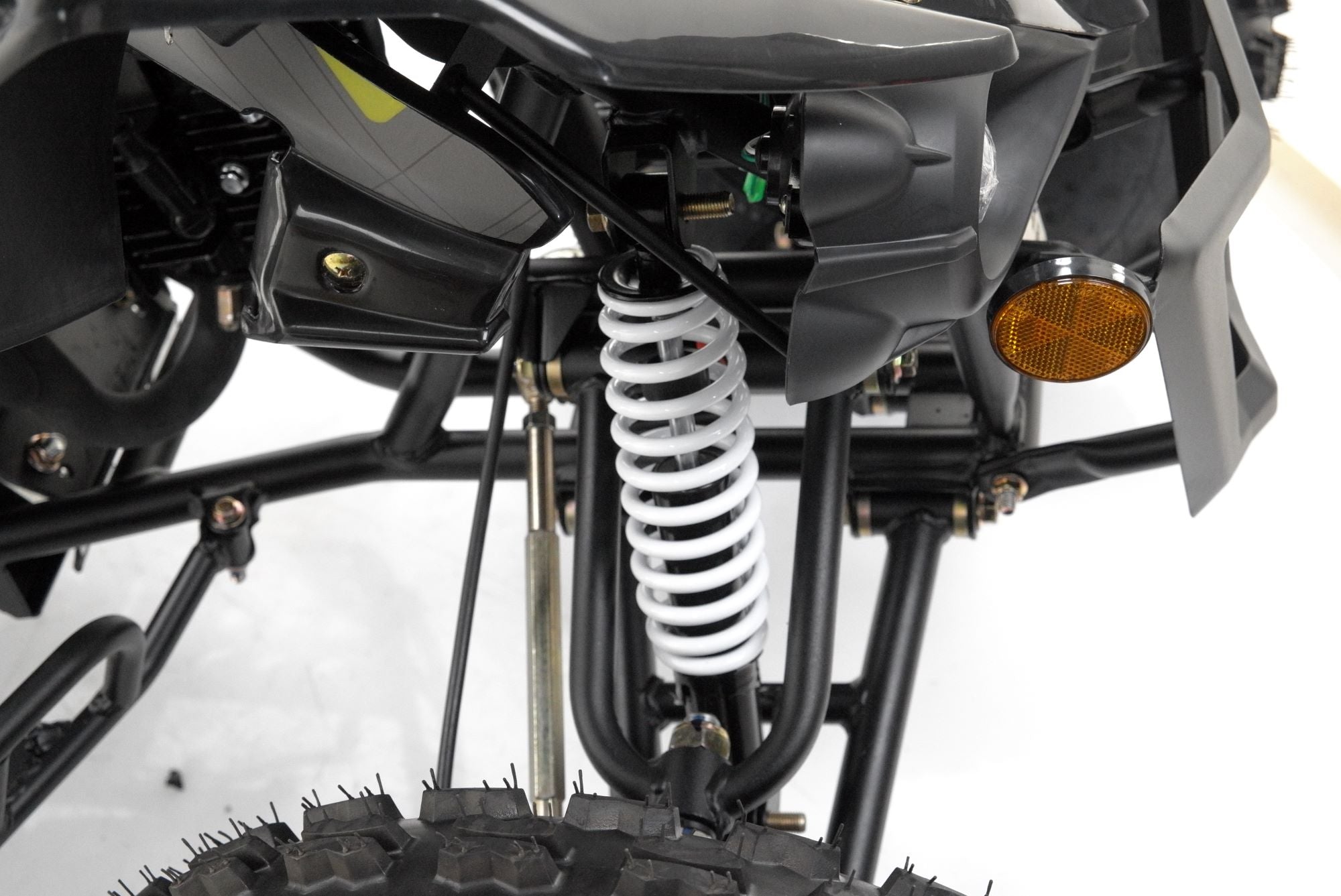

Brakes & Suspension
Reliable stopping power and responsive handling for safe off-road use.
-

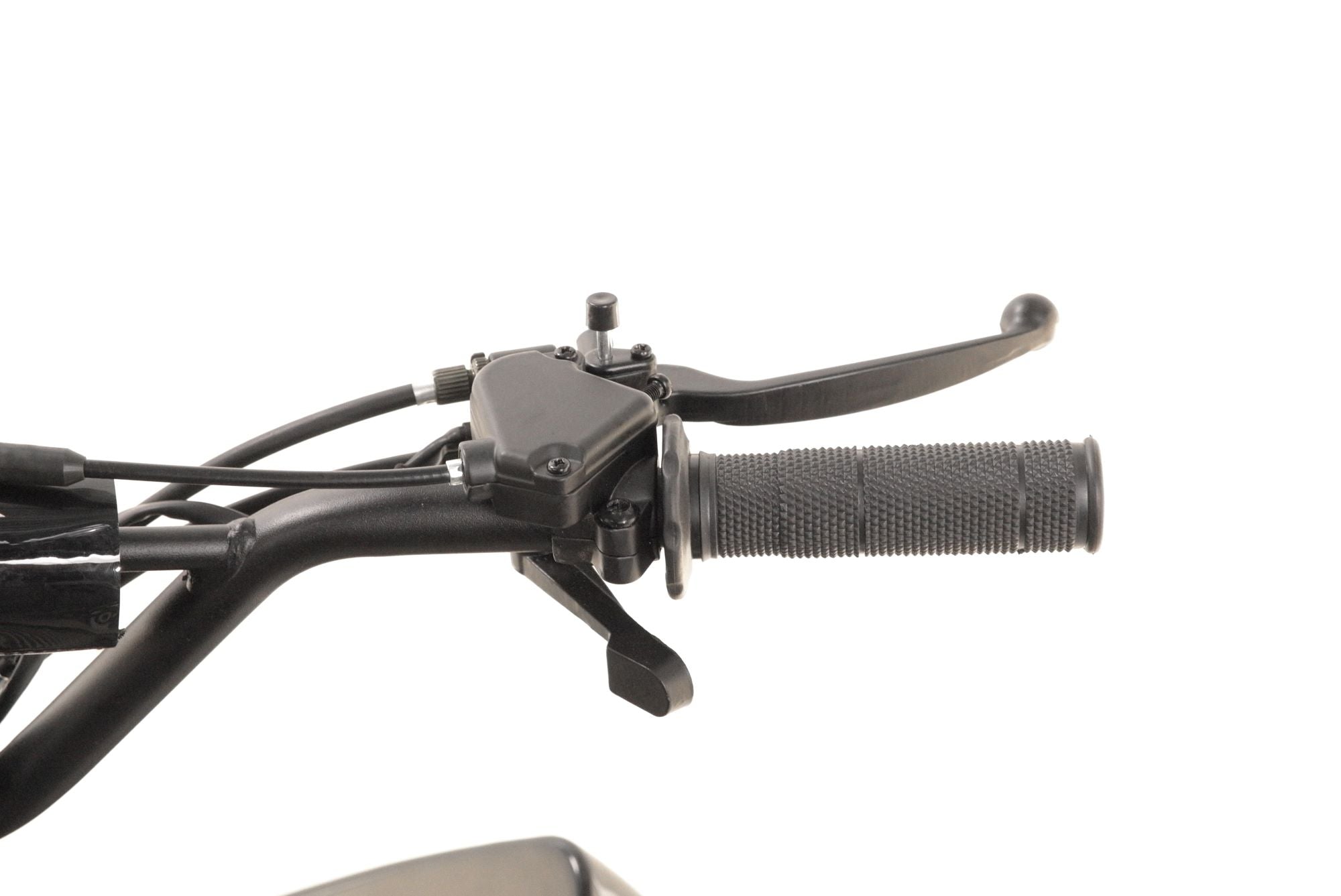

Front Brakes: Hydraulic disc, hand-operated
-

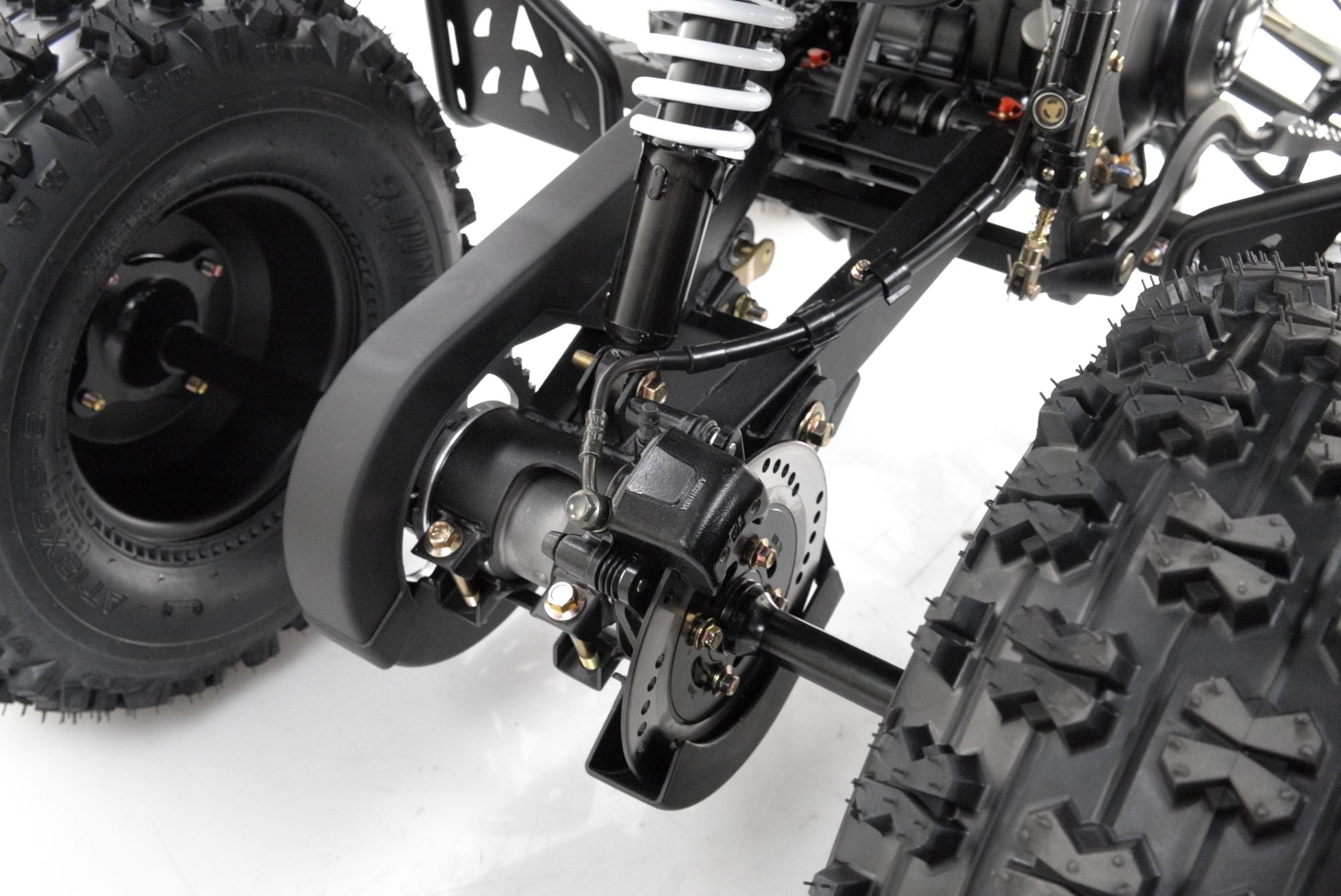

Rear Brake: Hydraulic disc, foot-operated
Wheels & Tyres
Durable 8-inch wheels and wide tyres provide great stability and grip on various terrain.
-
Front Tyres: 19 × 7.0 – 8
-
Rear Tyres: 18 × 9.5 – 8
-
Wheel Track (Front / Rear): 795 mm / 680 mm
Dimensions & Weight
Compact but solidly built — great for younger riders or light-duty outdoor use.
-
Length: 1495 mm
-
Width: 970 mm
-
Height: 1000 mm
-
Seat Height: ~800 mm (approximate from full height)
-
Ground Clearance: 120 mm
-
Wheelbase: 965 mm
-
Dry Weight: 121 kg
-
Curb Weight: 123 kg
-
Max Load Capacity: 100 kg
-
Steering Bar Angle: ≥15°
Frame & Design
-
Chassis Frame: Welded steel pipe construction
-
Overall Packed Dimensions: 160 × 80 × 80 cm
-
Total Shipping Weight: 145 kg
