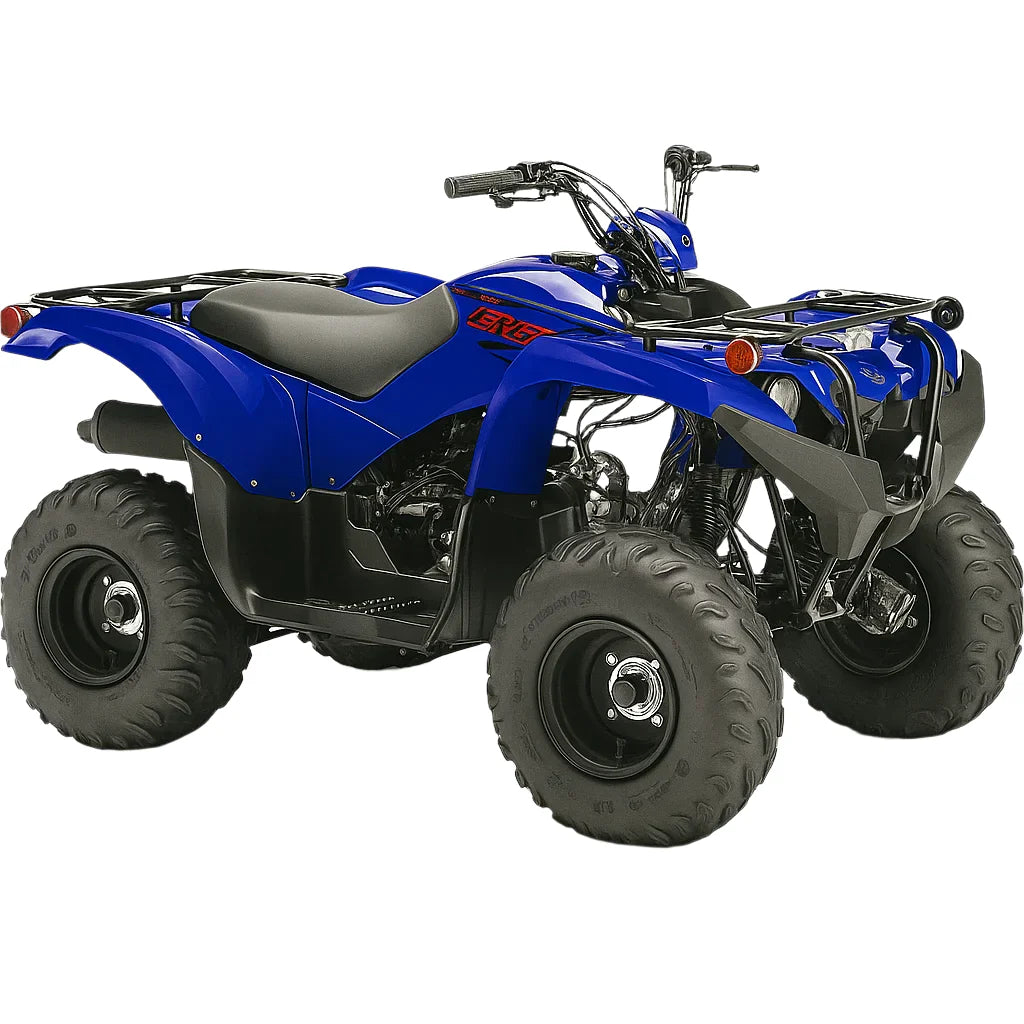

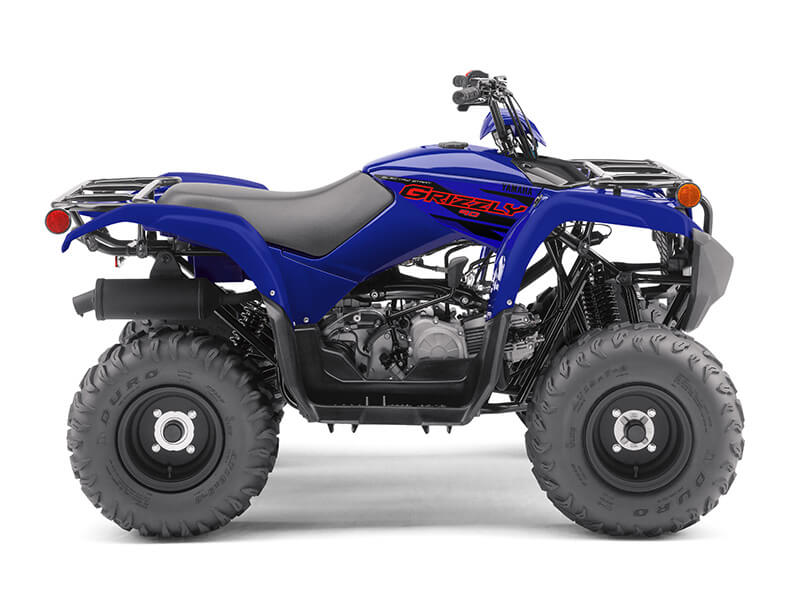

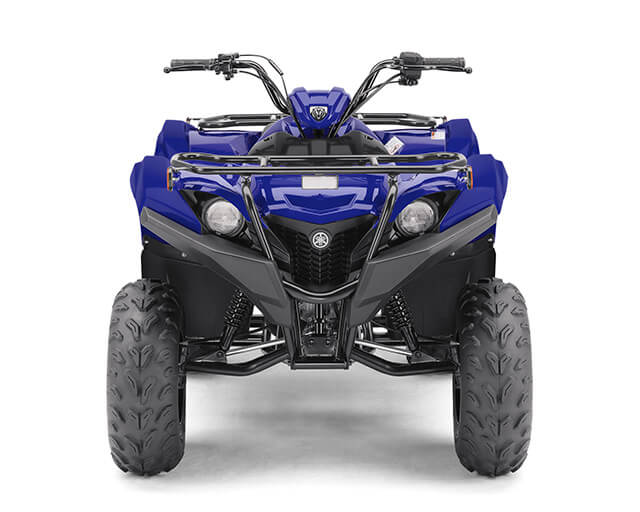

The Grizzly 90 is built to bring maximum fun for young ATV riders ages 10 and up. The low-maintenance 90cc engine is tuned to deliver excellent low- to mid-range performance, while the fully automatic CVT transmission with reverse, gated shifter and back-up kickstart all come standard.

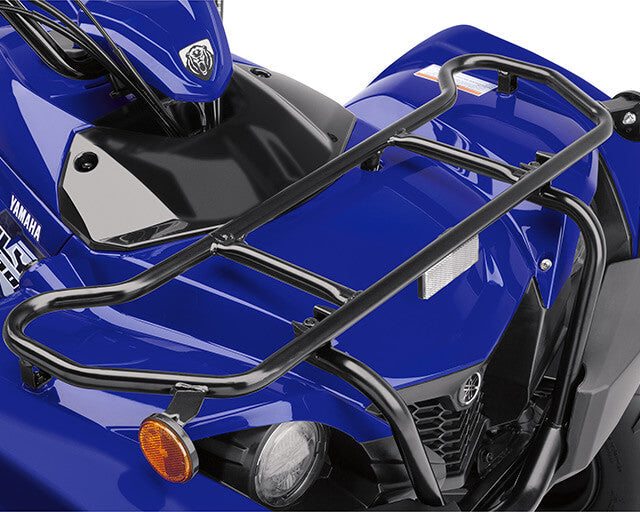

With convenient features like electric-start, a large comfortable seat, front/rear racks and aggressive styling, the Grizzly 90 is the perfect machine for riders who want to REALise Adventure with family and friends.
*The product images shown are for illustration purposes only and may not be an exact representations of the product. Cullys Yamaha reserve the right to change product images and specifications at anytime without notice. Additional products may be displayed within image to illustrate the product offered for sale.
Technical Specifications

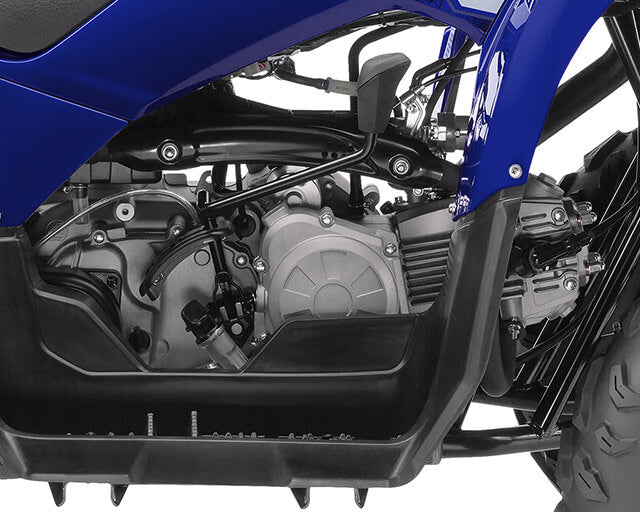

Engine
-
Type: Air-cooled, 4-stroke, SOHC, 2-valve, single-cylinder
-
Displacement: 90 cc
-
Bore × Stroke: 47.0 × 51.8 mm
-
Compression Ratio: 9.2 : 1
-
Lubrication System: Wet sump
-
Fuel Management: H66D × 1
-
Ignition System: CDI
-
Starting System: Electric & Kick
-
Fuel Tank Capacity: 6.6 L
-
Final Drive: Chain
-

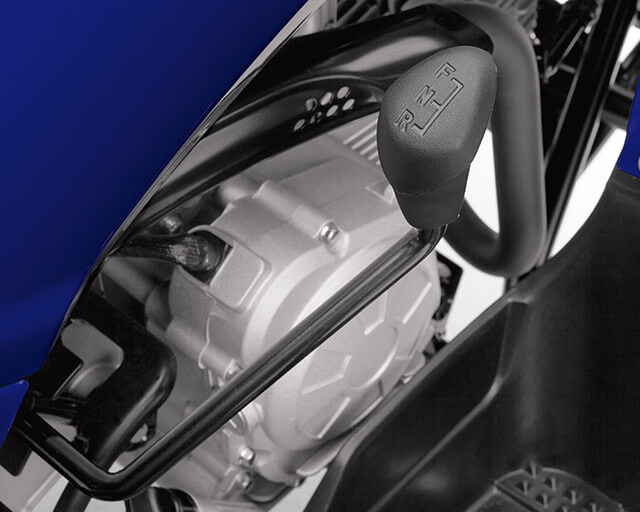

Transmission: V-belt automatic with Forward, Neutral, and Reverse
Chassis
-
Frame Type: Steel tube
-
Front Suspension: Single A-arm, 126 mm travel
-
Rear Suspension: Swingarm, 145 mm travel
-
Front Brakes: Dual drum
-
Rear Brake: Drum
-
Front Tyres: AT19 × 7-8
-
Rear Tyres: AT18 × 9-8
Dimensions & Weight
-
Overall Length: 1563 mm
-
Overall Width: 1030 mm
-
Overall Height: 1005 mm
-
Seat Height: 730 mm
-
Wheelbase: 1030 mm
-
Ground Clearance: 210 mm
-
Wet Weight: 139.6 kg
